Simple perfect hash generator, driven by a YAML config file.
Runs as an EA: reads your key/value map from
YAML, builds a perfect hash with PerfectHashByLeo,
and emits a ready-to-include .mqh with the tables and lookup function already written.
A perfect hash function maps a fixed, known set of keys to distinct slots with no collisions
so lookups are just a couple of arithmetic ops and an array index, no chaining or probing needed.
SimPHash builds that table for you at design time from a YAML key list.
---
## Main Features
- **YAML-driven, no code required**: you don't write the perfect hash tables by hand you list your keys (and optionally values) in a YAML file, run the EA once, and it generates the `.mqh` for you.
- **Two swappable hash stages**, matching how [PerfectHashByLeo](https://forge.mql5.io/nique_372/PerfectHashByLeo) works internally: a bucket hash (FNV-1a 64 or xxHash64) followed by a final displacement hash (MurMur-style, SplitMix64, fmix64 or Fibonacci hashing).
- **Two output modes**: either a table of **final values** (the generated function returns your mapped value directly) or a table of **indices** (the function returns a position into your own array useful when the value is too complex to inline).
- **Optional binary export**: alongside the `.mqh`, you can dump the seeds/hashes/values/meta as raw `.bin` files (useful if you want to load the table at runtime instead of compiling it in).
- **Generates a complete, working lookup function** both a `string`-keyed overload and a pre-hashed `ulong`-keyed overload, so callers who already computed the hash elsewhere can skip re-hashing.
Every parameter accepted by the YAML config is documented, with a ready-to-copy template, in **[Src/Template/README.md](./Src/Template/README.md)**.
---
## Usage: the process

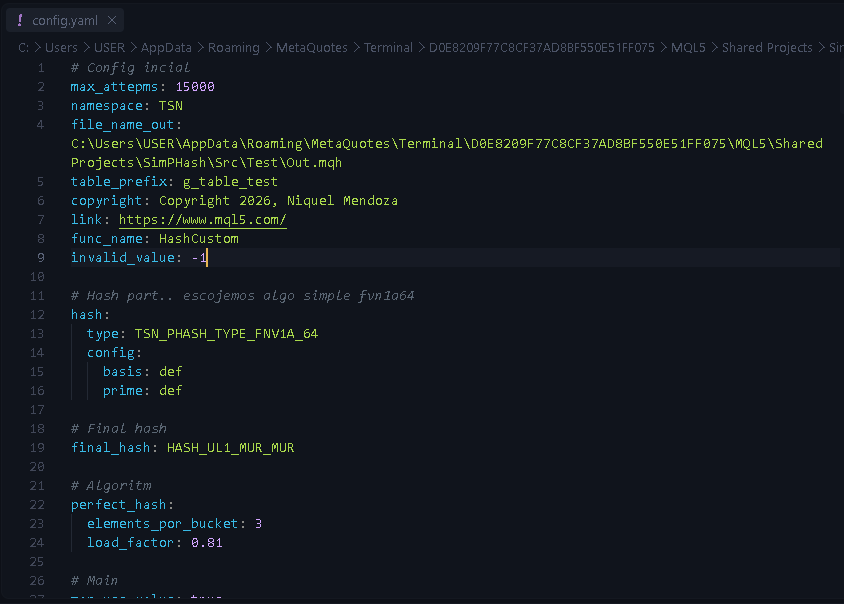

**1. Write your YAML config** list your keys, pick your hash stages, point `file_name_out` at the `.mqh` you want generated. Full parameter reference: [Src/Template/README.md](./Src/Template/README.md).

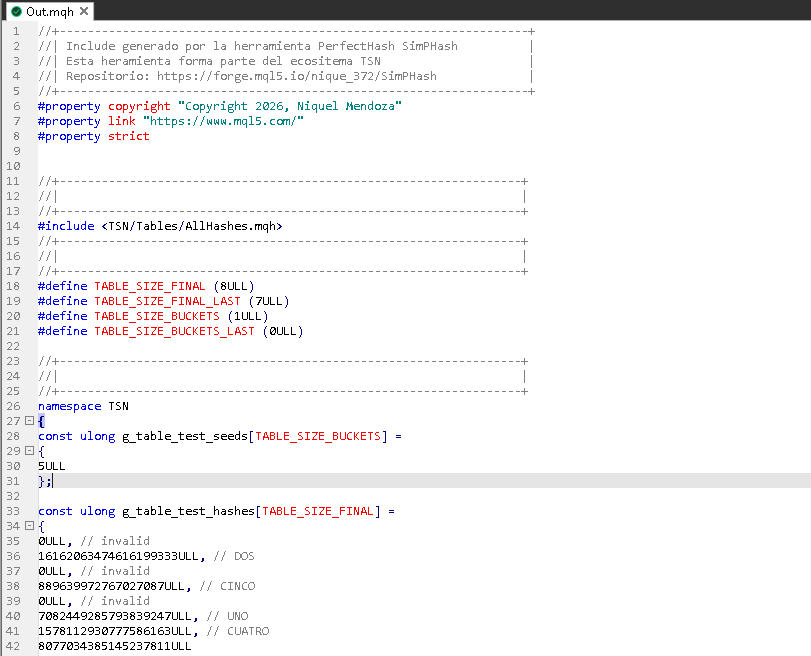

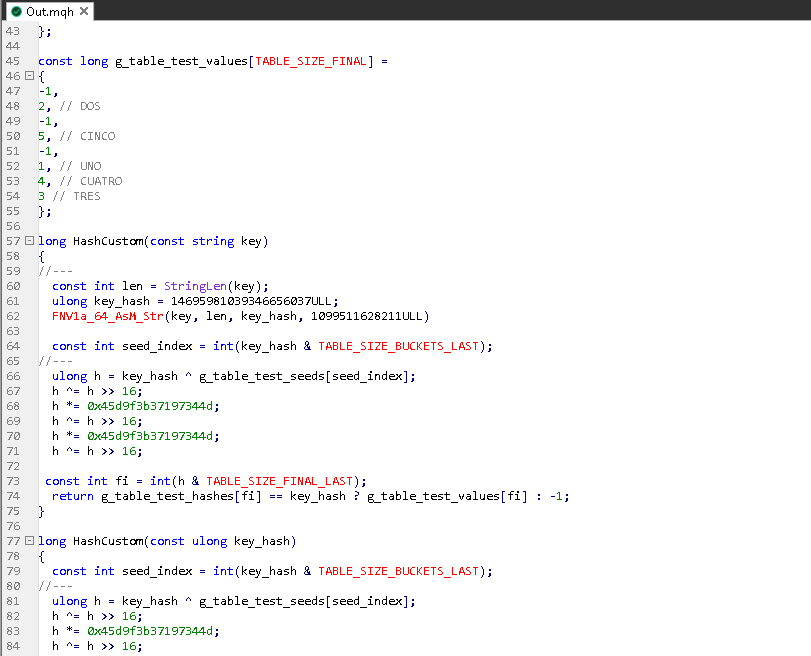

**2. Run `SimpHash.mq5`** pointing `InpYamlFileName` at that config. It generates the `.mqh` with the seed/hash/value tables plus a ready `HashCustom(const string& key)` / `HashCustom(const ulong key_hash)` function:

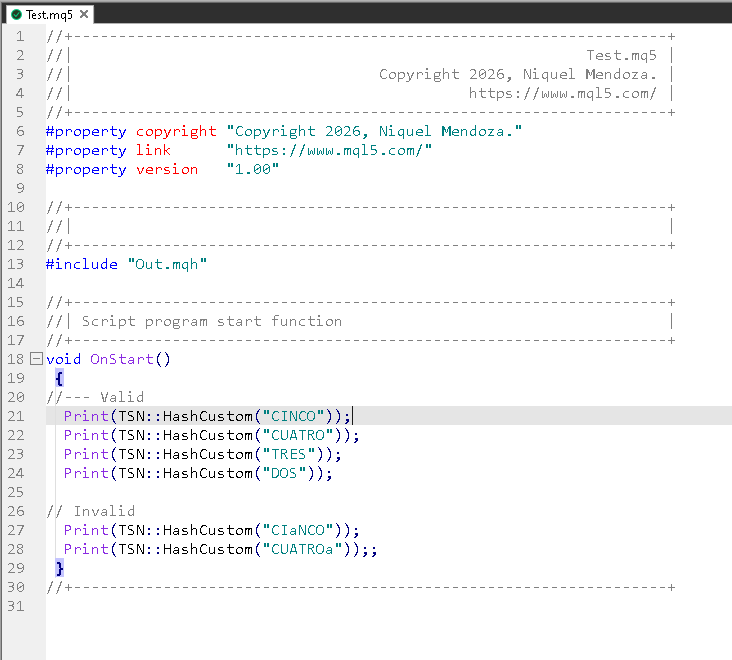

**3. Include the generated file** in your own project and call the generated function:
**4. Done** valid keys resolve to their value, unknown keys return `invalid_value`:
---
## Repository Structure
```
SimPHash/
├── SimpHash.mq5 # Main EA reads the YAML config and generates the .mqh
├── dependencies.json # tsndep manifest (private repos required to compile)
├── Src/
│ ├── PerfectHash.mqh # Core generator logic
│ ├── Def.mqh
│ ├── Hash/ # Hash strategies (bucket hash + final displacement hash)
│ ├── EnumReg/ # YAML enum registry
│ ├── Template/ # config.yaml template + full parameter reference (README.md)
│ └── Test/ # Sample config.yaml, generated Out.mqh and Test.mq5
└── Market/ # Screenshots used in this README and MQL5 Market version (free DLL)
```
---
## Installation
MetaTrader 5 build `5430` or later is required either way. Pick the path that matches what you want to do:
### For developers
Check [dependencies.json](./dependencies.json), and:
- **Install them with `tsndep`** (available on [PyPI](https://pypi.org/project/tsndep)) from your `Shared Projects` folder it reads [dependencies.json](./dependencies.json) and downloads everything declared there:
```bash
cd "C:\Users\YOUR_USER\AppData\Roaming\MetaQuotes\Terminal\YOUR_ID\MQL5\Shared Projects"
tsndep install "https://forge.mql5.io/nique_372/SimPHash.git"
```
### For users
You don't need the source or its private dependencies to use SimPHash pick one of these two options:
**Option A Manual (from the repo's releases)**
1. Download the latest compiled EA from [Releases](https://forge.mql5.io/nique_372/SimPHash/releases) and move it into your terminal's `MQL5/Experts` folder.
2. Clone the [`TsnTables`](https://forge.mql5.io/nique_372/TsnTables.git) repository into your `Include` folder the generated `.mqh` includes it (e.g. `#include `) to resolve the shared hash tables. See the [MqlIncludes convention](https://forge.mql5.io/nique_372/TSNReposIndex/src/branch/main/Conventions/MqlIncludes.md) for how these proxy includes work.
**Option B MQL5 Market (recommended, no manual steps)**
1. Get **SimPHash** from the [MQL5 Market](https://www.mql5.com/en/market/product/194416) it installs directly into your terminal, no moving files around.
2. Clone the [`TsnTables`](https://forge.mql5.io/nique_372/TsnTables.git) repository into your `Include` folder, same as in Option A.
> The Market build does not support the DLL-enabled code path it ships DLL-free.
Either way, once the EA is in place and `TsnTables` is available, jump to [Usage: the process](#usage-the-process) above.
---
## License
**[Read Full License](./LICENSE)**
By downloading, cloning, forking, or otherwise using this repository, you accept the license terms.
---
