MetaTrader 5 Indicator that detects consolidation ranges and generates signals based on three customizable strategies
---
## Main Features
- Three detection strategies: direct breakout, breakout with retest, and false breakout with re-entry
- ATR-based or fixed-point range difference thresholds
- Swing high/low detection via pure swings or ZigZag
- Fully customizable rectangle style (color, fill, line width, line style)
- Configurable wait bars for retest and re-entry strategies
- Built-in alert system (popup and push notification)
- Multi-timeframe support
---
## Strategies
| Strategy | Description |
|----------|-------------|
| **Direct Breakout** | Generates a signal on the bar that breaks the range |
| **Breakout + Retest** | Waits for price to return and retest the broken level before signaling |
| **Re-entry (Manipulation)** | Signals when price re-enters the range after a false breakout |
---
## Input Parameters
### General
| Parameter | Description |
|-----------|-------------|
| `strategy_mod` | Strategy type: Breakout, Breakout + Retest, or Re-entry |
| `strategy_tf` | Timeframe for range detection |
### Retest Strategy
| Parameter | Description |
|-----------|-------------|
| `max_espera_reetest` | Maximum bars to wait for a retest (default: 40) |
| `type_retest` | Strict or non-strict retest validation |
### Re-entry Strategy
| Parameter | Description |
|-----------|-------------|
| `max_espera_re_entry` | Maximum bars to wait for re-entry (default: 40) |
### Range Detection
| Parameter | Description |
|-----------|-------------|
| `inp_type_get_swing` | Min/max detection mode: Pure Swings or ZigZag |
| `lenth_swing` | Swing candle length (used when Pure Swings mode is selected) |
| `period_zz` | ZigZag period (used when ZigZag mode is selected) |
| `inp_type_max_diff` | Max diff type: ATR-based or fixed points |
| `inp_atr_multiplier` | ATR multiplier for range width threshold |
| `inp_atr_period` | ATR period |
| `max_diff_in_high_lows_range_in_points` | Fixed max diff in points |
### Visual
| Parameter | Description |
|-----------|-------------|
| `fill_rect_range` | Fill the range rectangle |
| `clr_range` | Rectangle color |
| `style_range` | Line style |
| `width_range` | Line width |
### Alerts
| Parameter | Description |
|-----------|-------------|
| `enable_alerts` | Enable/disable alerts |
| `range_alerts_flasg` | Alert types: `Notification`, `Alert`, or both |
---
## Preview

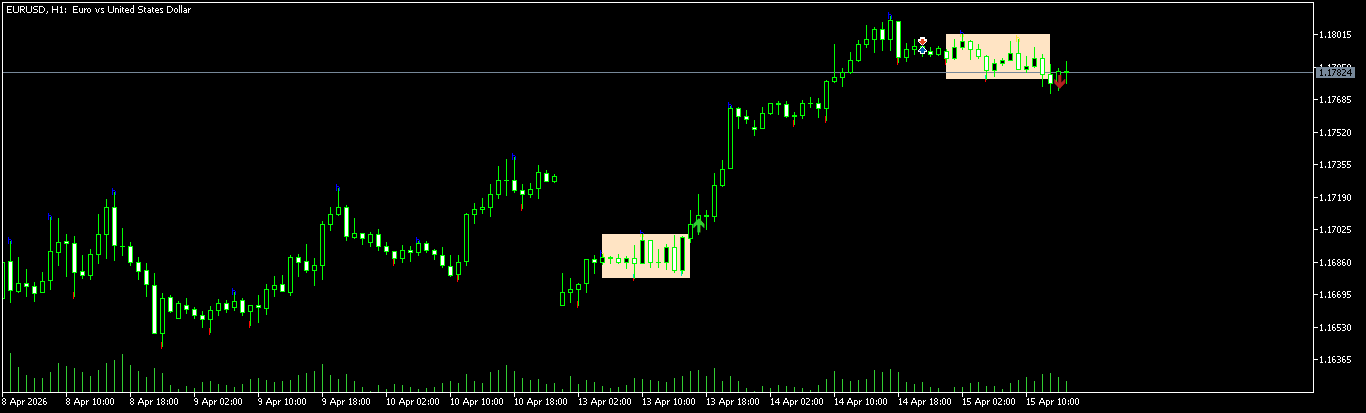

### Direct Breakout

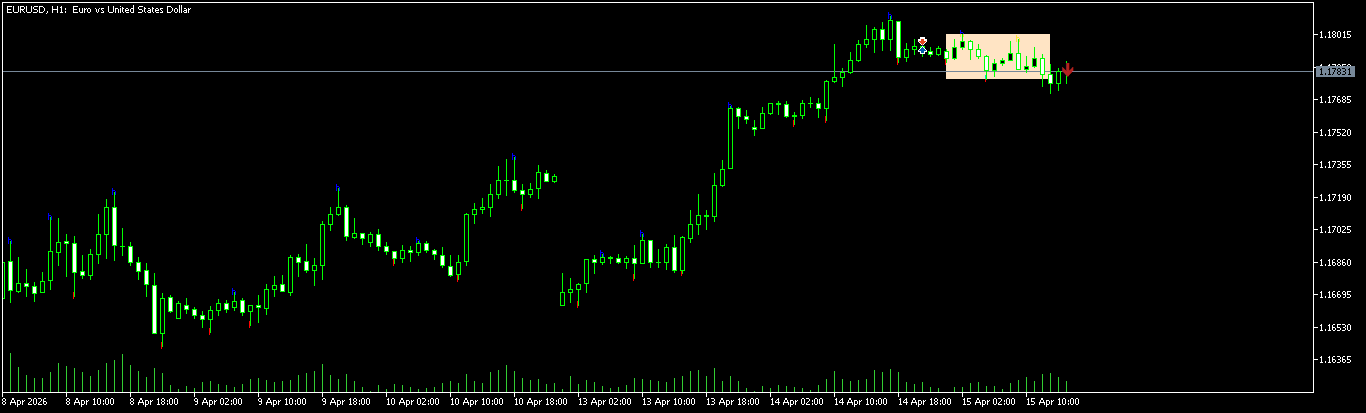

### Breakout + Retest
### Re-entry (Manipulation)
---
## Repository Structure
```
MultiStrategyRangesIndicator/
├── Src/ # Core strategy logic (MultyEstrategieRange.mqh, Global.mqh, etc.)
├── Img/ # Repo banner and assets
└── Multi Strategy Ranges Indicator.mq5 # Main indicator file
```
---
## Requirements
See `dependencies.json` for the full dependency list.
---
## Installation
- Clone the repository into your MT5 `MQL5\Shared Projects\` folder via CMD
- Or contact me on MQL5 (user: `nique_372`) to be added as a collaborator with read-only access — the repository will appear automatically in your Shared Projects folder
- Or fork the repository
---
## Quick Start
1. Download the latest `.ex5` from the Releases section
2. Copy the `.ex5` file into your MT5 `MQL5\Indicators\` folder
3. Attach the indicator to any chart and configure the inputs
---
## License
**[Read Full License](./LICENSE)**
By downloading or using this repository, you accept the license terms.
---
## Disclaimer
**Trading involves substantial risk of loss.**
- This software is a technical tool, not financial advice
- Past performance does not guarantee future results
- You are solely responsible for your trading decisions
- Always test thoroughly before deploying with real capital
- Use appropriate risk management at all times
The authors assume no liability for trading losses, system failures, or any damages arising from the use of this software.
---
## Contact and Support
- **MQL5 Product Page:** https://www.mql5.com/en/market/product/133514
- **Comments & Community Support:** https://www.mql5.com/en/market/product/133514/comments
- **Profile:** https://www.mql5.com/es/users/nique_372
- **Issues:** Use the repository issue tracker for bug reports and feature requests
---
**Copyright © 2025 Nique-Leo. All rights reserved.**
